Cyclone Dust Cover

The structure of the cyclone hood makes it extremely effective in vacuuming.

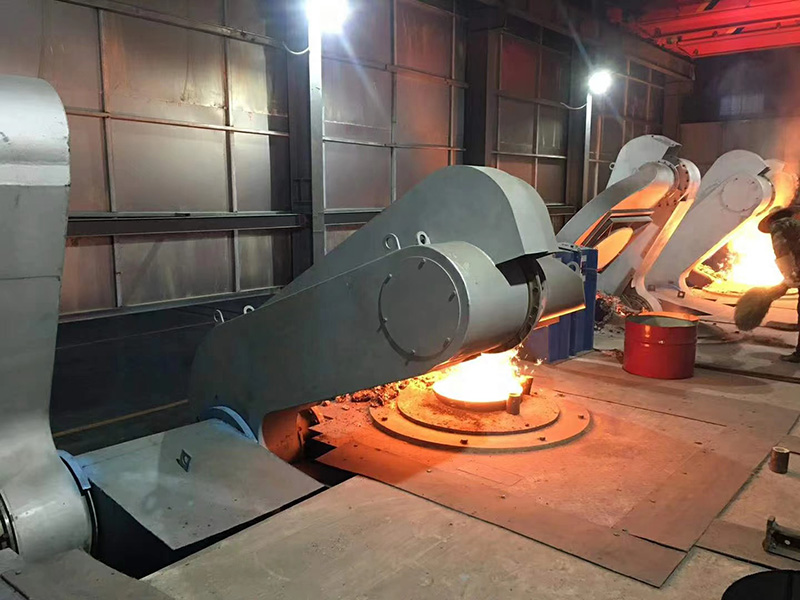

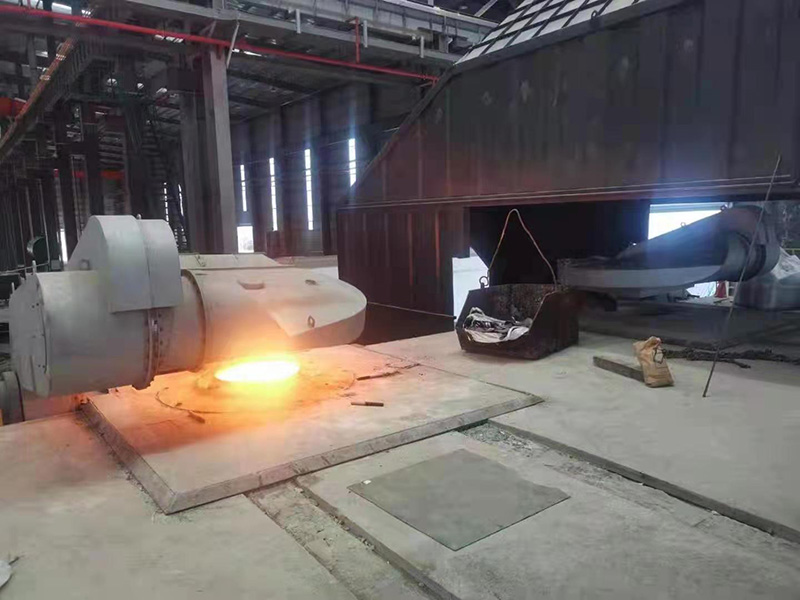

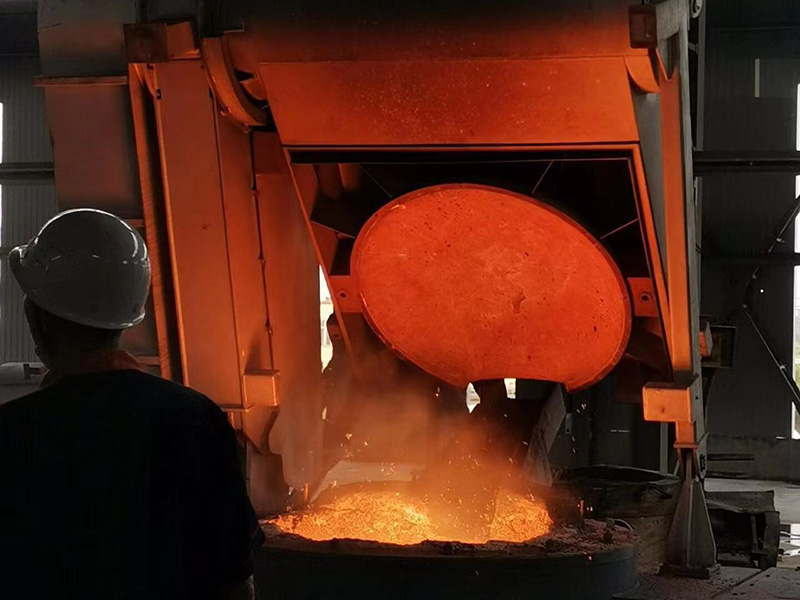

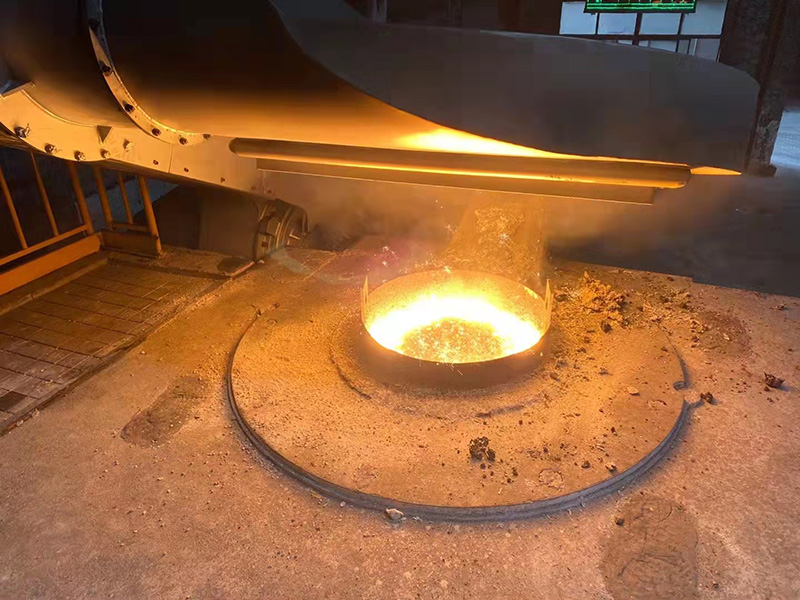

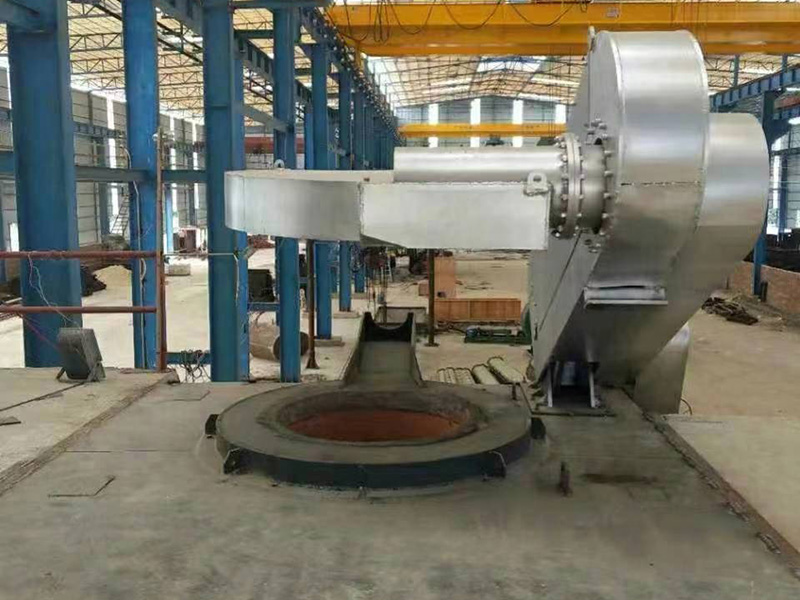

Cyclone dust hood, sturdy steel structure design, the furnace cover built with refractory material is fixed in the middle of the dust hood. The flat steel structure reduces the thickness of the entire hood and takes up less space. It is even more advantageous when pouring molten iron into the ladle in front of the furnace hanging from the crane. In the whole molten iron process, the maximum tilting angle can be obtained to ensure that the molten iron can be completely emptied.

Compared with the traditional hydraulic tilting hood, the biggest advantage of the cyclone vacuum hood is its double-turning working mode. Staying at any position, there is no need to operate the positioning pin to change the tilting direction, while the traditional vacuum hood can only be turned back and forth. When the furnace is operating, the cyclone dust hood can prevent the furnace cover from baking the operator and reduce the work intensity of the workers. The cyclone dust hood can effectively work in all production stages of the electric furnace, and it can also effectively vacuum dust when the molten iron in front of the furnace is processed, which cannot be achieved by the hydraulic tilting dust hood.
