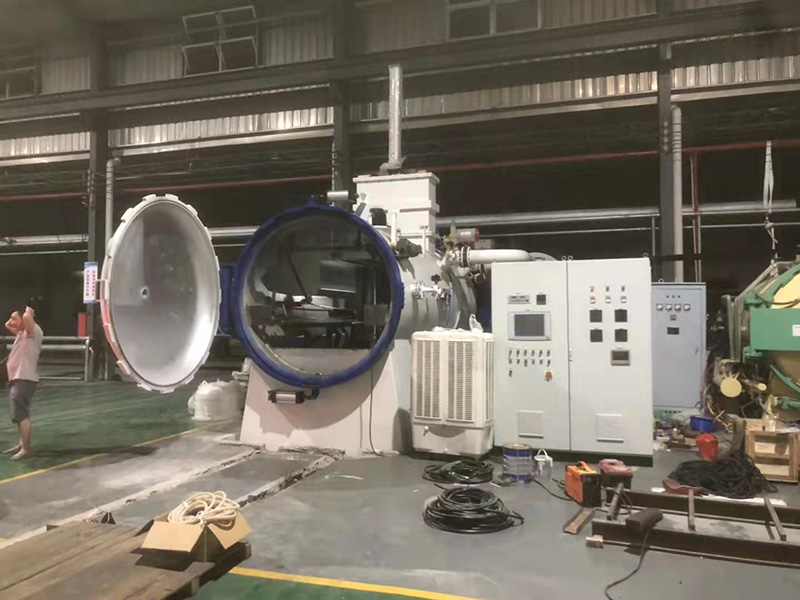

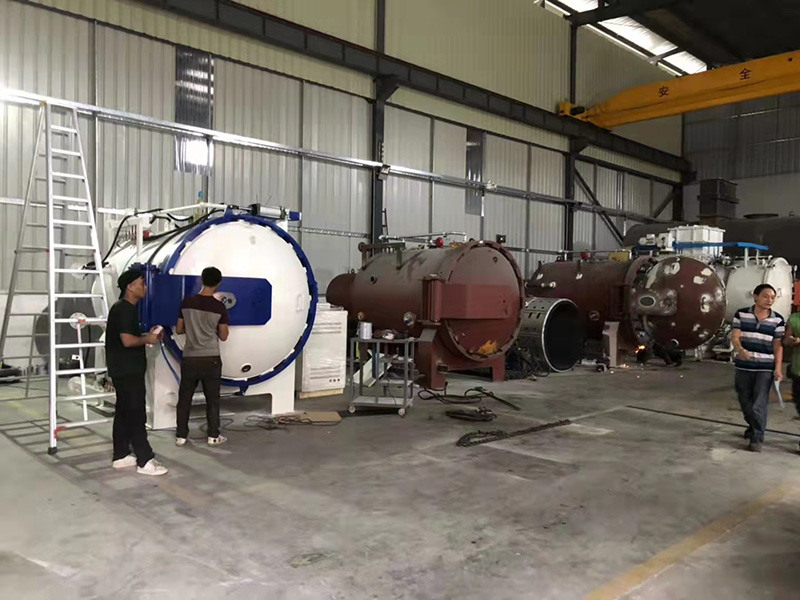

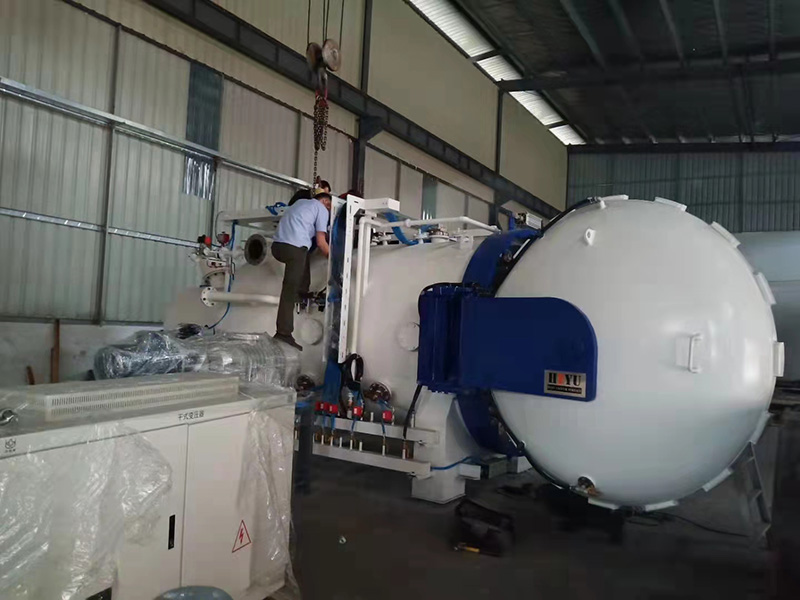

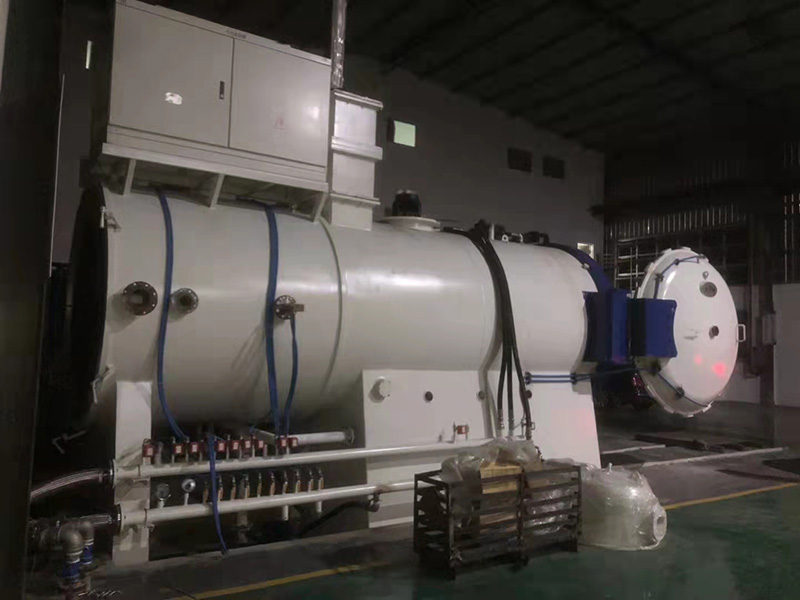

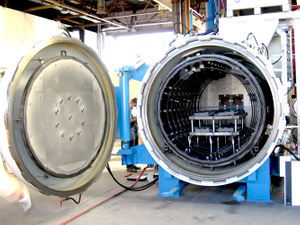

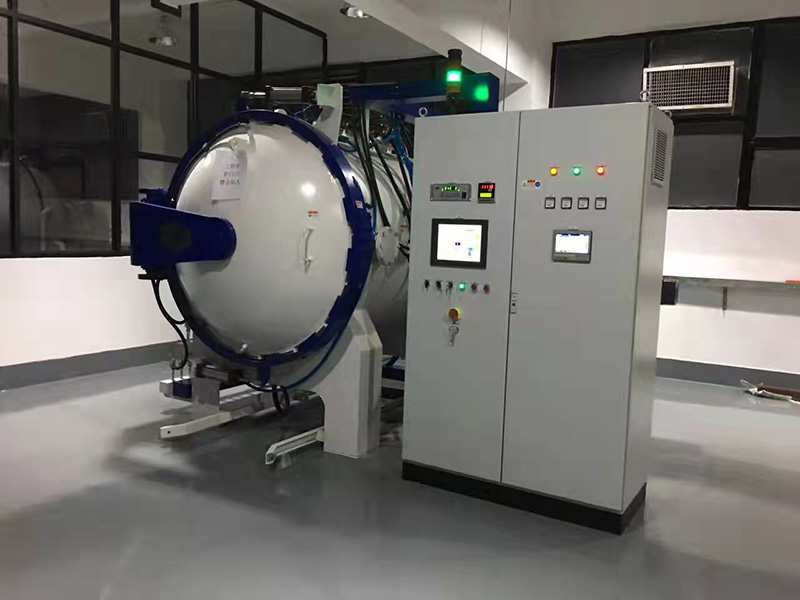

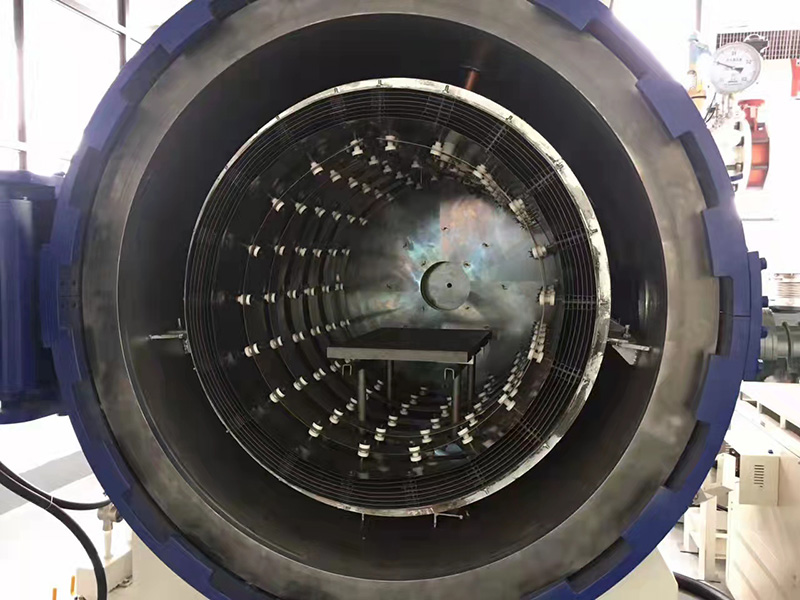

Vacuum horizontal brazing furnace is an electric heating furnace composed of pressure cold-wall furnace shell, molybdenum heating molybdenum thermal insulation furnace, vacuum system, cooling system, etc. The furnace thermal insulation materials are molybdenum and stainless steel. The workpiece placement method can be divided into vertical or bedroom. This furnace type is widely used in aerospace/aviation, weapons, automobiles, electronics, machinery industry and other fields. Annealing, tempering, brazing and other heat treatment processes can be carried out.
Characteristic:
The hinge method of the furnace door is a new type of hinge; the limit of the furnace door does not need to be manually lifted, the furnace door is automatically stuck when it is opened to 90 degrees, and it will be released with a little force when it is turned back;
The sealing method of the furnace door is a double-sealing structure, which is composed of positive pressure sealing and negative pressure sealing; it increases the sealing reliability of the furnace door;
The vacuum system is equipped with a high-flow safety valve, which can protect the vacuum pump and bellows from danger when the valve leaks;
Dual redundant design of measurement and control system (including temperature control and pressure);
The primary pump and the secondary pump are integrated into a pump frame, equipped with an initial pumping valve to solve the problem of the early load of the pump, and the appearance is beautiful and reliable;
The heat exchanger adopts the extruded tube heat exchanger and the unique water inlet and outlet method, and the cooling speed is faster in the low temperature section;
Structural improvements such as water-cooled electrodes are easier to assemble, have a higher conductive cross-section, and are more reliable;
Unique air duct design, graphite air duct adopts Venturi flow channel design, it will be the first company in China to adopt this air duct design method;
Related product:
In addition to vacuum brazing furnaces, we can also provide vacuum sintering furnaces, which can be used in the industrial production of cemented carbide, dysprosium, and ceramic materials.
Contact us for customized solutions
